Description

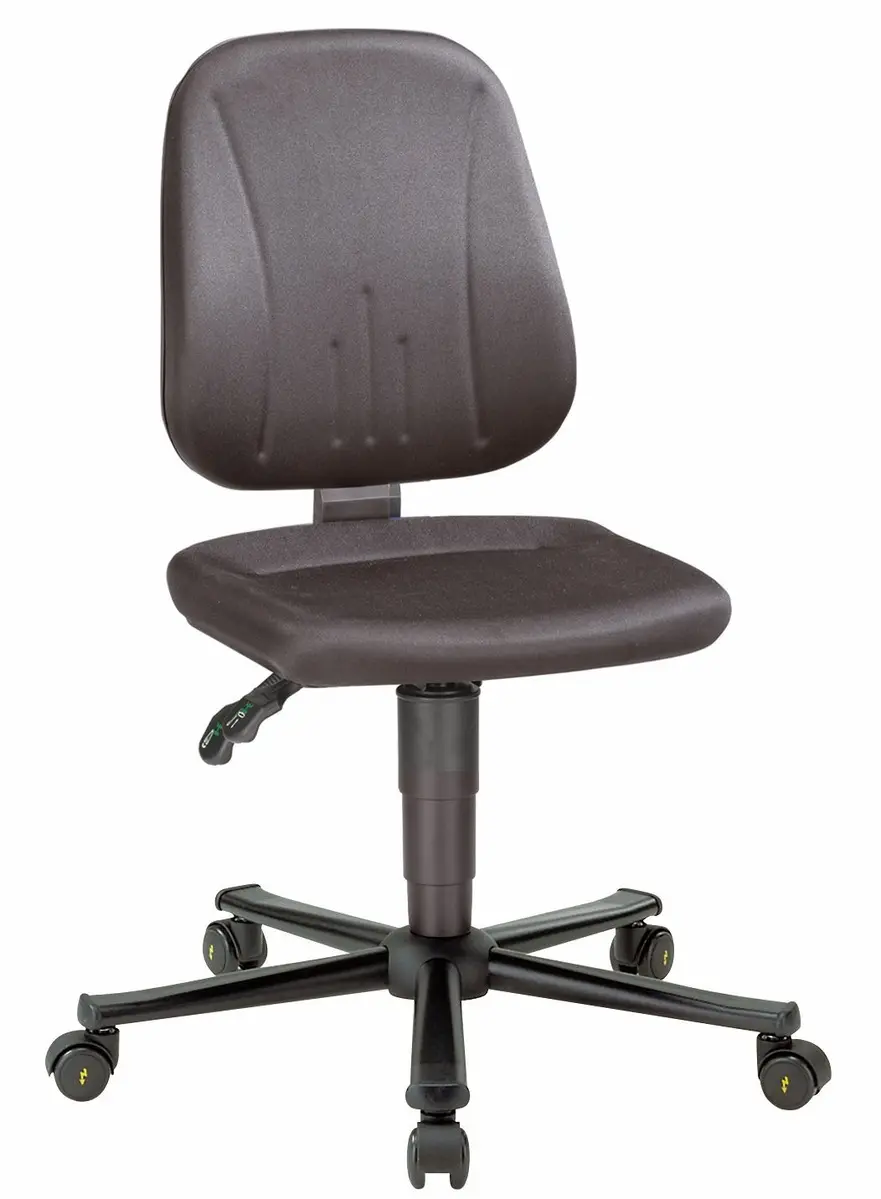

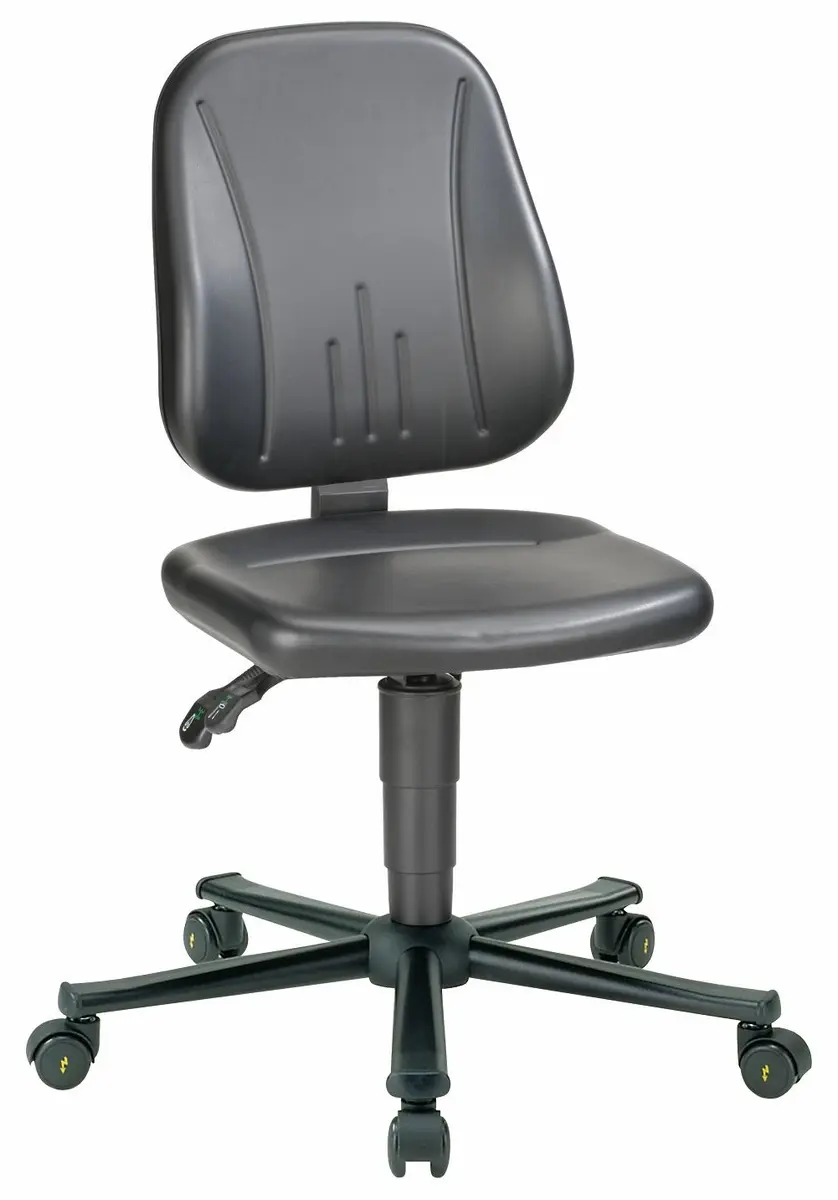

Bimos ESD Unitec Low Chairs

Meets IEC61340-5-1, typically returning at <10⁶ Ohms
Groundable "Seat & Back to Castors"
Conductive Safety Castors - lock with no load / free under body weight
Colour: Black
Ergonomically designed seat with rounded front edge
Adjustable Backrest: Height 460mm
Adjustable Seat: Height 440 < 620mm
Seat: Width 460mm
Seat: Depth 470mm
Packaged weight: 12 kg
German manufacture

ESD Unitec is a standard yet solid seating option. It offers all the standard functions and can be easily adjusted by the user.

Comprehensive discharge capability is not a requirement for many areas. Therefore, ESD Unitec does not feature the conductive plastic components and steel components with conductive coating found on other Bimos ESD models. Nevertheless, there is absolutely no compromise in terms of how the upholstery manages to direct electrostatic charges down to the conductive base.

The workplace and design quality of production and laboratory areas is becoming more and more demanding especially in ESD protected areas. Control of electric discharge can be absolutely critical in work areas like:

Electrical engineering
Automotive electronic systems
Computer electronics
Tele-communication
Industrial electronics
Consumer electronics

Bimos ESD chairs fulfil the requirements of the EN 61340-5-1 standard for use in ESD protected areas (EPAs). Typical discharge resistance is 10⁶ Ω.

Features & Benefits:

Backrest:

Large, ergonomically designed backrest takes the strain off the spine and muscles
Backrest height adjustment
Healthy posture due to a hump providing support for the back

Seat:

Ergonomic seat design with rounded front edge
The round front edge of the seat helps blood circulation

Seat height:

Stepless seat height setting from 440-620 mm supported by safety gas spring with protective cover

Technology:

Permanent contact backrest - ensures the backrest responds immediately to any movements of the upper body by following them. Thus, the back remains supported all the time and the backrest can also be locked into any tilt position if required

Base:

Aluminium, powder coated, black. Flat design. Very high stability, longevity and steadiness. Flat design prevents stumbling hazard.

Castors:

Dual-wheel safety castors with load-sensitive brakes
For hard floors as standard
Chairs are braked when not used, which decreases the accident risk.

Materials:

The materials used are correctly sorted and recyclable
Environment-friendly

Upholstery Choices:

Fabric: - Hard-wearing, breathable and comfortable fabric cover. The upholstery is breathable and assimilates and releases humidity.
Skai Synthetic leather: - High-quality synthetic leather, washable, low maintenance and impervious to oil and disinfecting agents. Ideal for the use in production and laboratory.

Standards:
