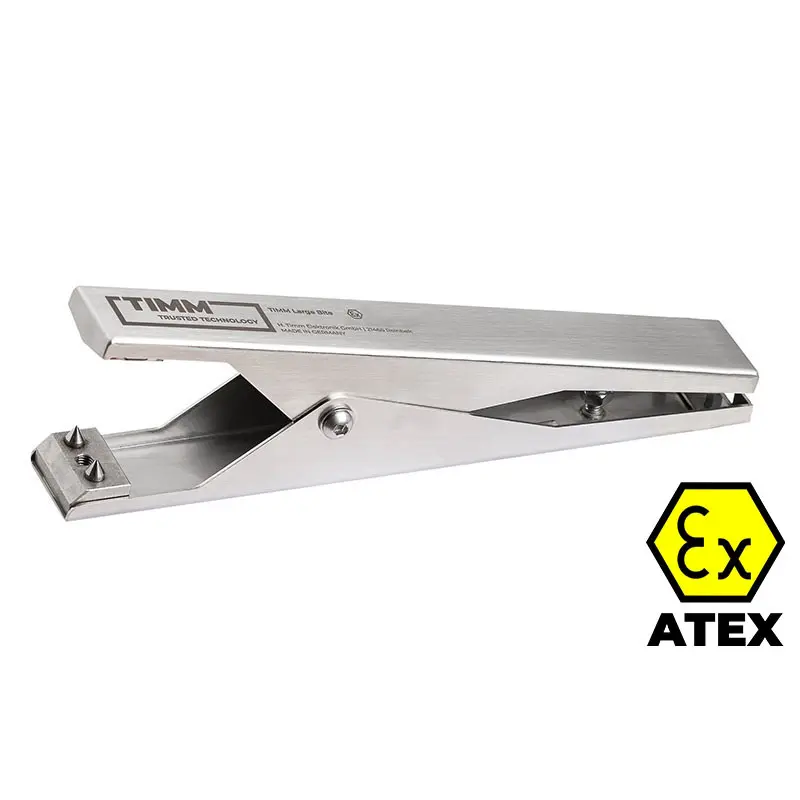

TIMM Stainless Steel Large Grounding Clamp

TIMM Stainless Steel Large Grounding Clamp

• Made in Germany
• Stainless Steel 302 / 1.4310, V2A
• Extra strong all-round solution for electrostatic grounding in rough work environments
• Easy handling
• Suitable for clamping to large objects
• Hardened stainless steel points
• Strong spring pressure for effective clamping
• Integrated cable clamp
• Ex, ATEX
• Tip protection in rest position (opposite relief bores)

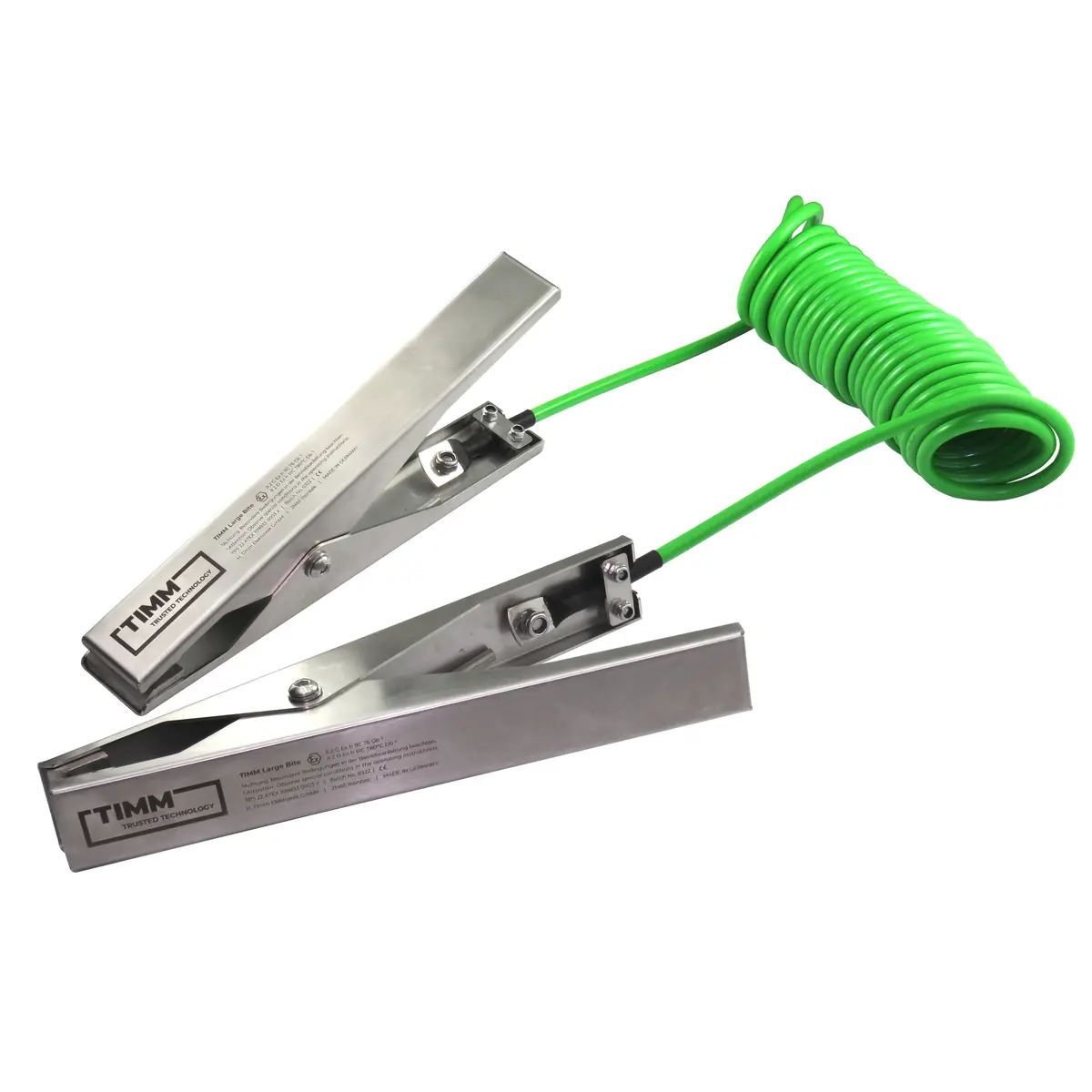

• Available as clamp only or with grounding cable
• Recommended grounding cable: strong stranded coiled steel

Specifications:

• Ex zones: 0, 1, 2 and 20, 21, 22
• Ex certifications: Ex II 1 G – Ex h IIC T6 Ga Ex II 1 D – Ex h IIIC T80°C Da

Dimensions:

• Width: 34mm (nom.)
• Length: 230mm (nom.)
• Gape: 40mm

Cable Options: Spiral

Cable material and sheath

• Steel rope core (4mm²), green
• Steel rope core (4mm²), green/yellow
• Multi-stranded copper core (4mm²), green/yellow

Cable length

• Extendable to 3m
• Extendable to 5m
• Extendable to 10m

Cable Options: Straight

Cable material and sheath

• Steel rope core (4mm²), green
• Steel rope core (4mm²), green/yellow
• Multi-stranded copper core (4mm²), green/yellow
• Steel rope core (4mm²), bare

Cable length

• 1.5m
• 3m
• 5m
• 10m
