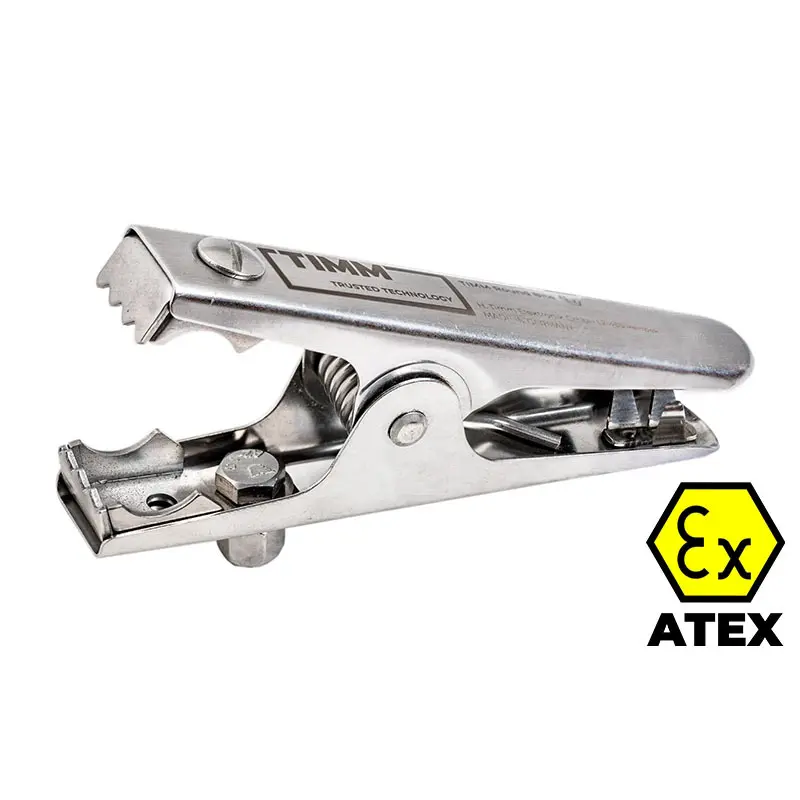

TIMM Stainless Steel Round Grounding Clamp

TIMM Stainless Steel Round Grounding Clamp

• Made In Germany
• Stainless Steel 302 / 1.4310, V2A
• Grounding clamp for use with predominantly round grounding profiles, e.g. ideal for grounding IBC frames, tubes, bars, uncoated flat profiles, etc.
• Also suitable for clamping some fabrics
• Easy handling
• Ex, ATEX
• Strong spring pressure for effective clamping
• Integrated cable clamp
• Available as clamp only or with grounding cable
• Recommended grounding cable: strong stranded coiled steel

Specifications:

• Ex Zones: 1 and 21
• Ex Certification: Ex II 2G Ex h IIA / IIB / IIC T6 Gb Ex II 2D Ex h IIIC T80°C Db

Dimensions:

• Width: 26mm (nom.)
• Length: 150mm (nom.)
• Opening: 45mm

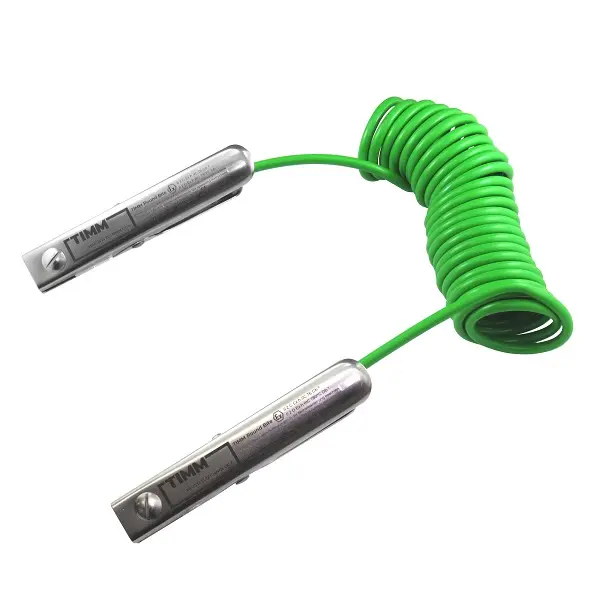

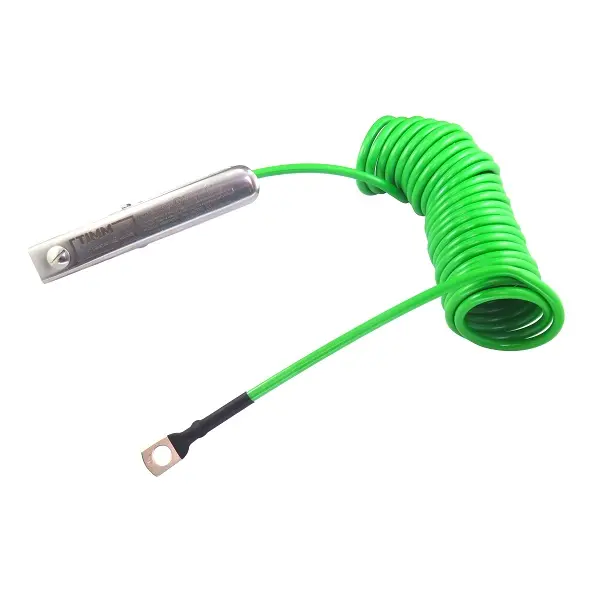

Cable Options: Spiral

Cable material and sheath

• Steel rope core (4mm²), green
• Steel rope core (4mm²), green/yellow
• Multi-stranded copper core (4mm²), green/yellow

Cable length

• Extendable to 3m
• Extendable to 5m
• Extendable to 10m

Cable Options: Straight

Cable material and sheath

• Steel rope core (4mm²), green
• Steel rope core (4mm²), green/yellow
• Multi-stranded copper core (4mm²), green/yellow
• Steel rope core (4mm²), bare

Cable length

• 3m
• 5m
• 10m

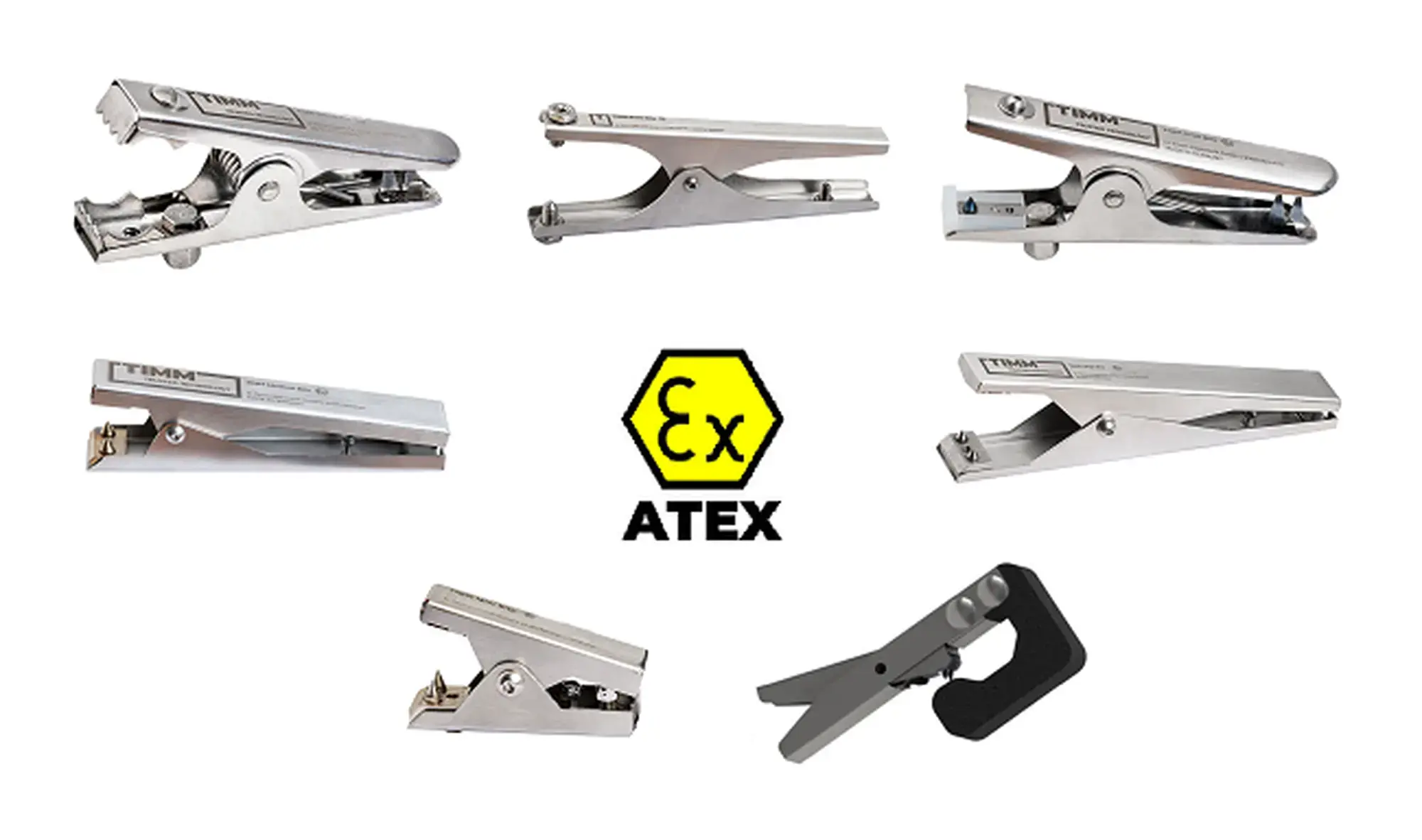

Here is a selection of other TIMM clamps that are available.
