Description

Hi-Tech Tinsel - Passive Static Neutralising

Bekistat conductive braid, for non-contact removal of electrostatic field / charge without mains powered high voltage.

"Hi-Tech Tinsel"
20% stainless steel / 80% polyester
Passive static neutralizing - no mains power
3 styles of braid:

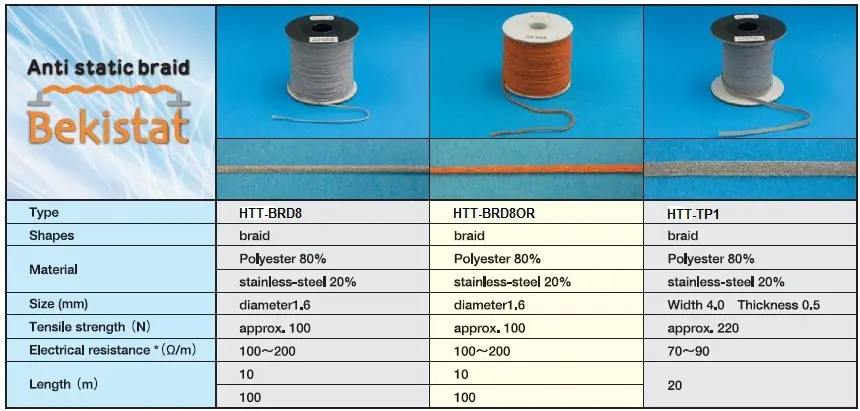

htt_bekistat_table

Typical Ω/m resistance values will vary with tension

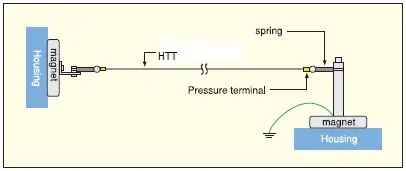

htt_atc_vtc_500

The HTT Braid must be connected to earth / grounded in order to perform effectively.

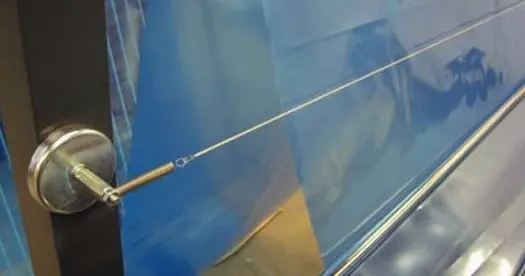

Vertical & Horizontal Magnetic Bases with and without grounding leads are available for ease of installation; they also have sprung tension connections.

Please refer to the schematic above & contact the office should you wish to discuss your requirement further.

Hi-Tech Tinsel

Item No. HTT-##

31738

Category: / Ionizers & Charging Systems / Hi-Tech Tinsel / Hi-Tech Tinsel

$0.00 ea. +GST

Item No.	Item Name	Min Order Qty	Weight	Price	Qty
HTT-BRD8C	Hi-Tech Tinsel - 1.6mm dia. x 100m roll	1		POA
HTT-BRD8D	Hi-Tech Tinsel - 1.6mm dia. x 10m roll	1		POA
HTT-BRD8ORC	Hi-Tech Tinsel - Orange - 1.6mm dia. x 100m roll	1		POA
HTT-BRD8ORD	Hi-Tech Tinsel - Orange - 1.6mm dia. x 10m roll	1		POA
HTT-TP1	Hi-Tech Tinsel - 0.5 x 4mm, 20m roll	1		POA
ATC-H20	Magnetic Base for Horizontal fixing of HTT, 20mm high with NO Grounding Wire	1		POA
ATC-H20-LW	Magnetic Base for Horizontal fixing of HTT, 20mm high with Grounding Wire	1		POA
VTC-HTT	Magnetic Base for Vertical fixing of HTT with NO Grounding Wire	1		POA
VTC-HTT-LW	Magnetic Base for Vertical fixing of HTT with Grounding Wire	1		POA
