Description

DISCONTINUED LINE - PLEASE CONTACT THE OFFICE FOR MORE DETAILS

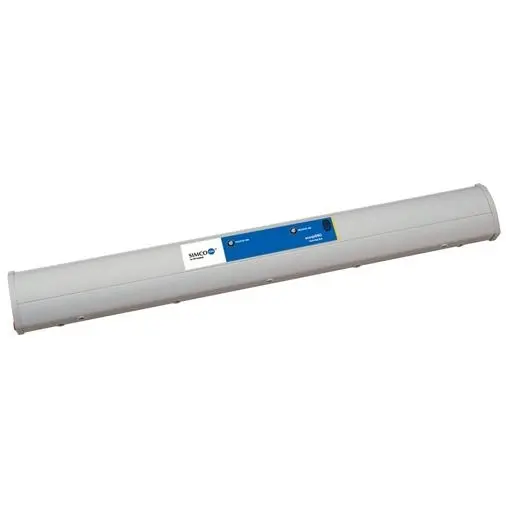

High Performance In-tool Ionizing Bar scorpION3 with Adjustable Steady-State & Pulse DC

Standard bars come with Tungsten emitters, but Ultra-Clean Single Crystal Silicon emitters are available as an option.

Simco-Ion’s High Performance In-tool Ionizing Bar scorpION3 with Adjustable SS & Pulse DC is designed to meet the stringent requirement of semiconductor, medical device and other critical environments requiring static and contamination control. Its features offer the industry’s lowest decay times while sustaining a limited offset voltage swing.

The ScorpION3 is excellent for both laminar and turbulent airflow environments. The air assist models allow for faster decay times and protection over greater distances in turbulent environments. The optional IR remote allows complete adjustment of all bar settings and offers full metering and diagnostic feedback. Our optional computer interface program allows for remote access to the bar and its settings over your system network.

Datasheet - Simco-Ion scorpION3

Specifications:
Input Power	24VDC, 200mA (per bar).
Connectors	6-pin RJ-11 modular jack receptacles provide power and RS-485 communications.
Communications	RS-485 buss
Address Control	Independently digitally set to one of 10 unique addresses.
Output Control	Performance stability is maintained using real time feedback, comparison to a value stored in the bar and adjusting via a microcontroller located in the
Operating Modes	Steady state DC, Pulsed DC and Peak Reduction. Pulsed DC adjustable in 0.125 second increments. Peak Reduction overlap adjustable 0 to 90%.
Mode Control	Each bar in a series can be set to operate independently or under control of a Master (Slave mode). Independent bars can be set to any operating
Alt. Fault Interface	1/8" (3.5mm) phone jack, opto-isolated transistor can be set to normally off or normally on.
Discharge Time	< 10 sec. typ. (24" w/90fpm unidirectional airflow) per ESD Assoc STM3.1-2000
Offset Voltage	< 30V typ. (24" w/90fpm unidirectional airflow) per ESD Assoc STM3.1-2000
Lengths	457 mm (18"), 610 mm (24"), 914 mm (36"), 1118 mm (44"), 1626 mm (64"), 1880 mm (74"), 1234 mm (84")
MMI Communications	IR (infrared) and wired RS-485
Connections	RJ-11 modular jack receptacles provide power and RS-485 communications.
Display	4-line LCD; menu driven interface.
Controls	Up/Down Arrow, Left/Right Arrow, Enter
Power on/off:	Slide Switch
Indicators	2 LEDs green transmit/red receive
Power	9 VDC Alkaline Battery, Type 1604
Dimensions	(110mmx196mm x32mm) 4.40"x7.70"x1.25"
Weight	0.34kg (0.75lbs.) w/bat.
Remote Enclosure	ABS, UL 94HB
Color	Bone
Software CD-ROM	CR-ROM Drive; Microsoft Windows NT/2000/XP.

#simco-ion

Adjustable Ionizing Bar

Item No. scorpION3

31895

Category: / Ionizers & Charging Systems / Ionization - Technology / Bars

$ ea. +GST

Item No.	Item Name	Min Order Qty	Weight	Price	Qty
scorpION3-18	scorpION3 - 457mm / 18"	1		POA
scorpION3-24	scorpION3 - 610mm / 24"	1		POA
scorpION3-36	scorpION3 - 914mm / 36"	1		POA
scorpION3-44	scorpION3 - 1118mm / 44"	1		POA
scorpION3-64	scorpION3 - 1626mm / 64"	1		POA
scorpION3-74	scorpION3 - 1880mm / 74"	1		POA
scorpION3-84	scorpION3 - 2134mm / 84"	1		POA
scorpION3-PS	scorpION3 - 230V / 24VDC Power Supply	1		POA
SI-MMI	MMI IR / RS-485 Hand-held Remote Communicator	1		POA
