Low Profile Ionizing Bar
Description

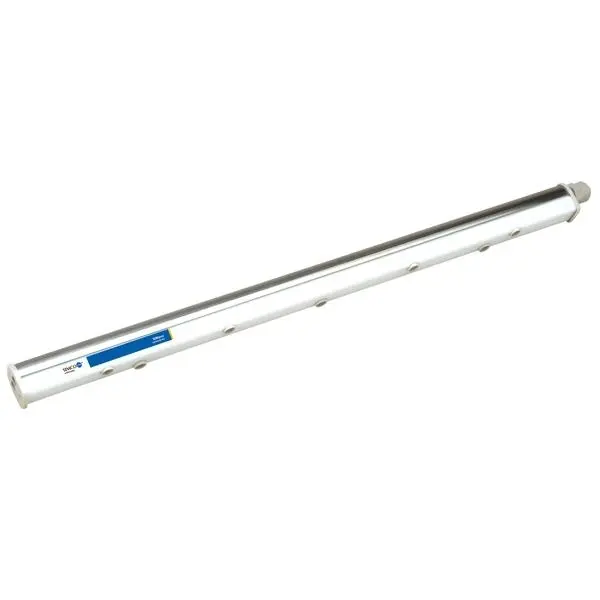

IONforce and IONforce with Air Assist Low Profile Ionizing Air Bars
Simco-Ion's IONforce and IONforce with Air Assist Low Profile Ionizing Air Bars require minimal maintenance and can provide years of dependable ionization performance. The IONforce ion bar is suitable for clean environments within industry standard ISO Class 4 or higher.
NOTE: Requires PFC-20 Controller to operate.
Please see Datasheet for options of Emitters & Cables
| Specifications: | |
| Input Voltage: | +/- 14 KV DC maximum |
| Input Current: | +/- 0.50 ïA nominal per emitter point |
| Operating Mode: | DC |
| Operating Temp: | 0° to 70°C (32° to 158°F) |
| Relative Humidity: | 0% to 85% non-condensing |
| Tube Fitting(optional): | Option 6mm O.D. x 3.0M long (¼"O.D. x 120") |
| Gas Supply(optional): | 0.17 to 0.31MPa (25 to 45psi) |
| Enclosure: | Polycarbonate, stainless steel |
| Dimensions: | 28.7mm H x 25.0mm W x L (1.13" x 0.98" x L) |
