Description

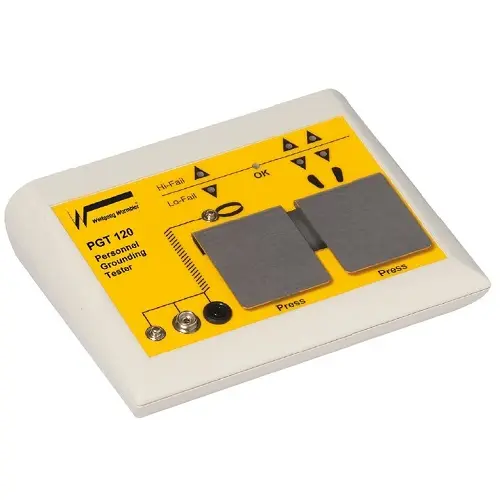

Adjustable Dual Footwear & Wrist Strap Tester - with Relay for access control

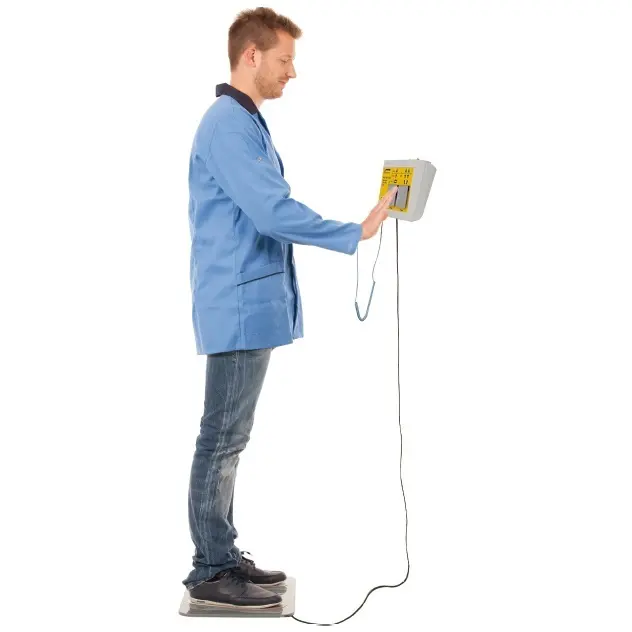

The PGT120 will test both feet, independently & simultaneously, reducing pass-through rates of personnel.

pgt120_table_june_2015_500

Adjustable Test Ranges for Footwear Tester

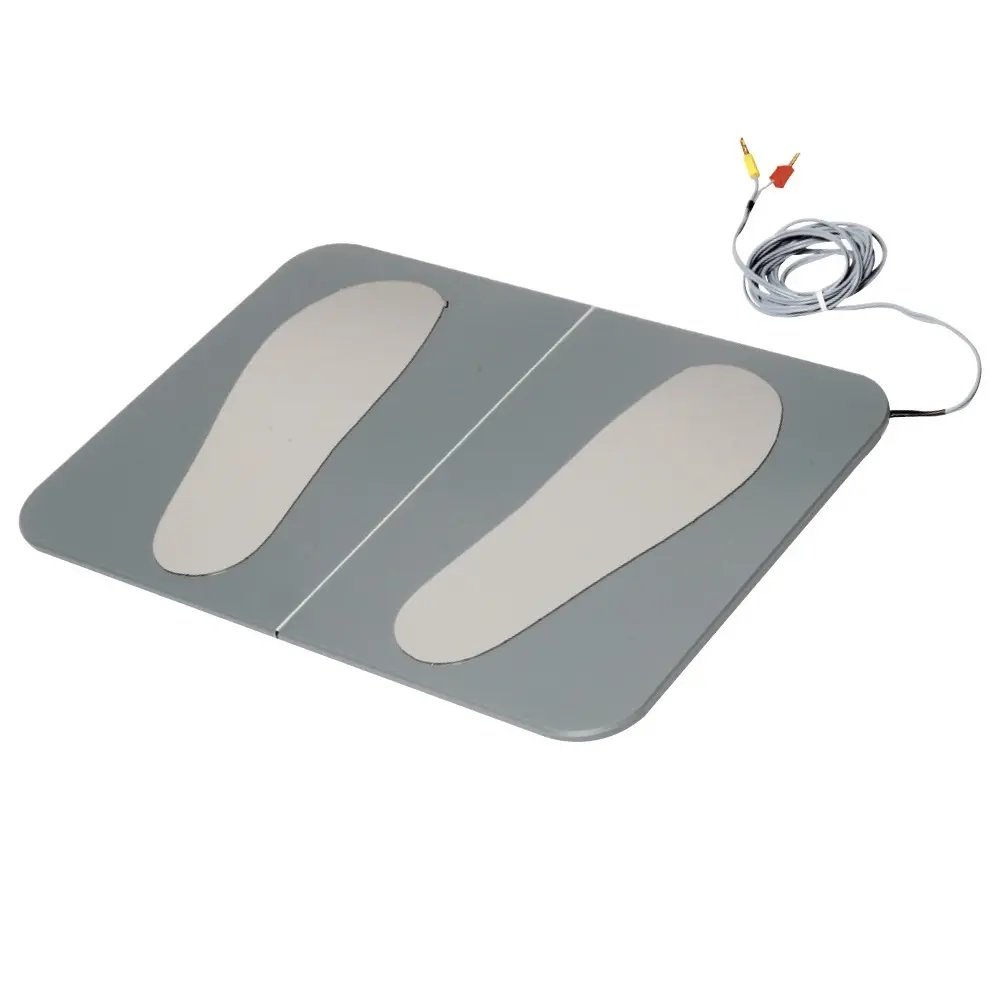

2 x independent stainless steel foot-plates: 350 x 500 x 8 mm - measure both feet independently & simultaneously
Power: AU mains adapter & 9V battery (included)
Signal: Audio / visual
Output: Relay output with dry contact to activate external operation, e.g. door opener, secondary process, etc.

Supplied with:
PGT120, footwear testing electrode, 9V battery, user's manual, calibration certificate

Options:

PGT120-WK: Stainless Steel Wall Mounting Bracket|
PGT120-12: Cal' Checker Unit for 12-DIP Switch PGT120 for 100kOhm, 200kOhm, 750kOhm, 35MOhm, 100MOhm & 200MOhm.
If you have an 8-DIP Switch PGT120, please contact the office.
PGT120-FTS: Free-standing Test Station Stand with Whiteboard
PGT120-FS: Free-standing Test Station Shelf

#wolfgangwarmbier #footweartester

Dual Footwear & Wrist Strap Tester - with Relay

Item No. PGT120-#

31841

$ ea. +GST

Item No.	Item Name	Min Order Qty	Weight	Price	Qty
PGT120	Wrist & Dual-Foot Tester - with Relay	1		$1,430.00
PGT120-WK	Stainless Steel Bracket for PGT120	1		POA
PGT120-12	Cal' Check Unit for PGT120 - 12 DIP Switches	1		POA
PGT120-FS	Free-Standing Test Station	1		POA
PGT120-FTS	Free-Standing Test Station with Whiteboard	1		POA
