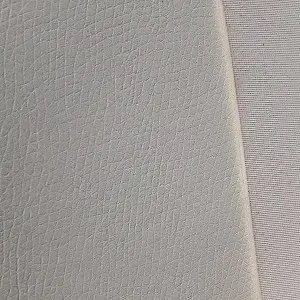

Ultimat™ CR White Bench Mat

Ultimat™ CR White Static Dissipative Work Surface Material

Ultimat™ CR White is a new technology static dissipative industrial grade elastomer designed for use on tables and other grounded workbench surfaces. Its electrical properties are volume dissipative unlike many of the surface dissipative properties of the competition. This material was developed to conform to the new Class Zero and RoHS requirements.

Ultimat™ CR White is a chemically cross-linked material throughout. Because it is inherently cross-linked the material is volume conductive. The layers are permanently dissipative with "space age dissipative polymers" which will not lose its electrical properties, not exudate, and more important will not outgas and contaminate in cleanroom environments. The material is as durable as rigid laminates and as comfortable and appealing as the softer rubber tablemats. Does not work with continuous monitors unless mat is placed on stainless steel tops which acts like the ground.

This material meets both the ANSI/ESD 20/20 and IEC 61340-5-1 specifications and therefore has outstanding charge dissipation, rapid charge decay, no charge suppression and outstanding low tribogeneration properties. The material will withstand solvents, soldering iron deformation, not curl, and have excellent abrasion resistance. The embossed surface will reduce light glare, increase part slip resistance, and facilitate cleaning. Since the material is free from halogens, lead, arsenic, barium, heavy metals, phthalate plasticizers, vinyl monomer, asbestos, formaldehyde, antimony, chromium, cadmium, and other dangerous volatiles it may be used in environments where out gassing and contamination is of concern. It is RoHS compliant. A full set of test results for out gassing and compatibility is available from Galbraith Labs, K+S Labs, and Balasz Test Labs.
