Event Detector

Novx MiniPulse2 ESD Event Detector

Enhanced Portable or Embeddable ESD Monitoring

See table below for options.

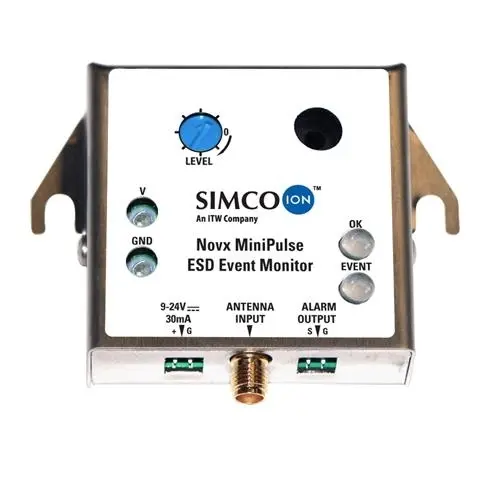

The Novx MiniPulse ESD Event Detector is designed for tool and process monitoring. This affordable, small footprint embeddable monitor has been developed to warn of product damage risks at the point of electrostatic discharge. This monitor uses time domain analysis to determine radiated ESD pulses, providing standby and ESD event LED warnings as well as an audio alarm function. In addition, pulse length discrimination is implemented via a variable time buffer.

Requires:

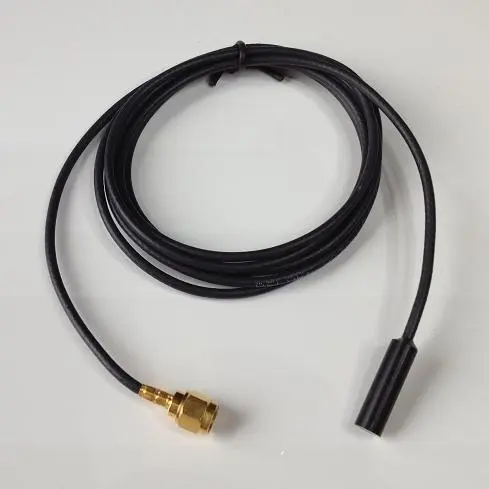

• Micro ESD Antenna: Suitable for use with Novx MiniPulse ESD Event Detector & 7000 Series

  • Can detect ESD events upto 10m away
  • 2 cable lengths available:
    • 33-0527-
    • 33-0527-12 (3.6m tri-axial cable)
• Power supply:
  • 9V battery
  • Hard wired DC

Features & Benefits:

• Small footprint
• Red/green LED alarm
• Audio alarm
• Adjustable alarm threshold
• Proximity limited
• Open Collector / Alarm Output for counter & system integration connection - <40VDC
• Tool and process embeddable
• Excellent for auditing or long-term applications
• Proximity tunable
• Specialized antenna options
• Portable monitoring
