Simco-Ion Compact Point-of-Use Blower

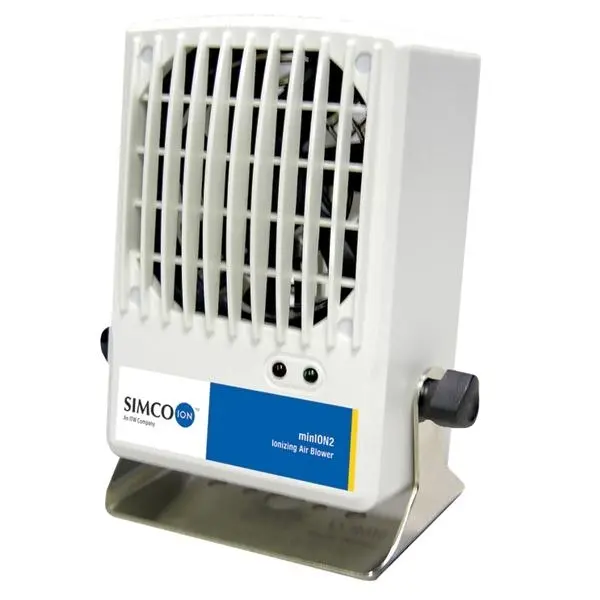

Simco-Ion Compact Point-of-Use Ionizing Blower MINION2
Simco-Ion’s Self-balancing Compact Point-of-Use Ionizing Blower minION2 is designed to control electrostatic charges in semiconductor and electronics manufacturing equipment and for benchtop applications requiring high performance in a compact package.
Specifications: | |
Discharge Time: | 2.0 seconds; (center position, high fan speed) |
Offset Voltage: | 0 ± 10V |
Ion Balance: | Auto-adjust DOCC technology |
Input Power: | 24VDC, 250mA, 6W |
Operating Temp: | 0°C to 50°C (32°F to 122°F) |
Audible noise: | 52dB (A) Max. |
Emitters: | 6 - Stainless Steel |
OFF/ON: | Two position switch. |
Fan Speed: | Recessed potentiometer. |
Indicator: | Green-power; Red-fault |
Connectors: | Two RJ-11/power; Plug type terminal block/ power and fault signal |
Dimensions: | 98 x 136 x 60mm (3 7/8 x 5 3/8 x 2 3/8 inches) |
Weight: | 0.5 kg (1.1lb.) |
Colour: | White |
