Simco-Ion Bench Top Blower

Simco-Ion Local Area Ionizing Blower

The Local Area Ionizing Blower Model 6432e controls static discharge in assembly, inspection, packaging areas, and in-tool wherever static build-up can cause contamination, ESD, material-handling problems or microprocessor lock-up.

Features:

• Input voltage: 24 VDC (+/-10%), 6 watts max. or 24 VAC (+/-10%), 50-60 Hz, 6 watts max.
• Mounting: Small in-tool bracket/stand supplied as standard (1.8 x 5.1 in./45 x 129 mm)
• Optional large bench top stand (4.1 x 5.1 in./ 108 x 129 mm); both with 1/4" mounting hole and 10-32 truss head screws
• Isostat technology
• Point of use blower
• Single speed - 49CFM (typical)
• Alarm
• FMS interface
• Tested to ANSI/ESD STM3.1-2000
• Mountable stand
• ROHS compliant
• Requires 24V transformer if not directly wired

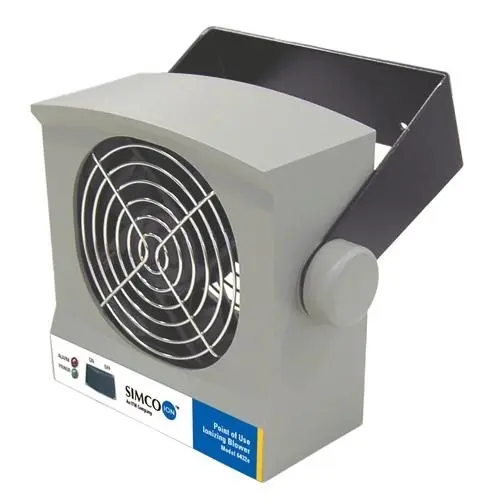

Note: picture shows flat base stand
