EPA Resistance Kit - Premium

SRM3000 EPA resistance Meauring Kit

SRM3000 consists of:

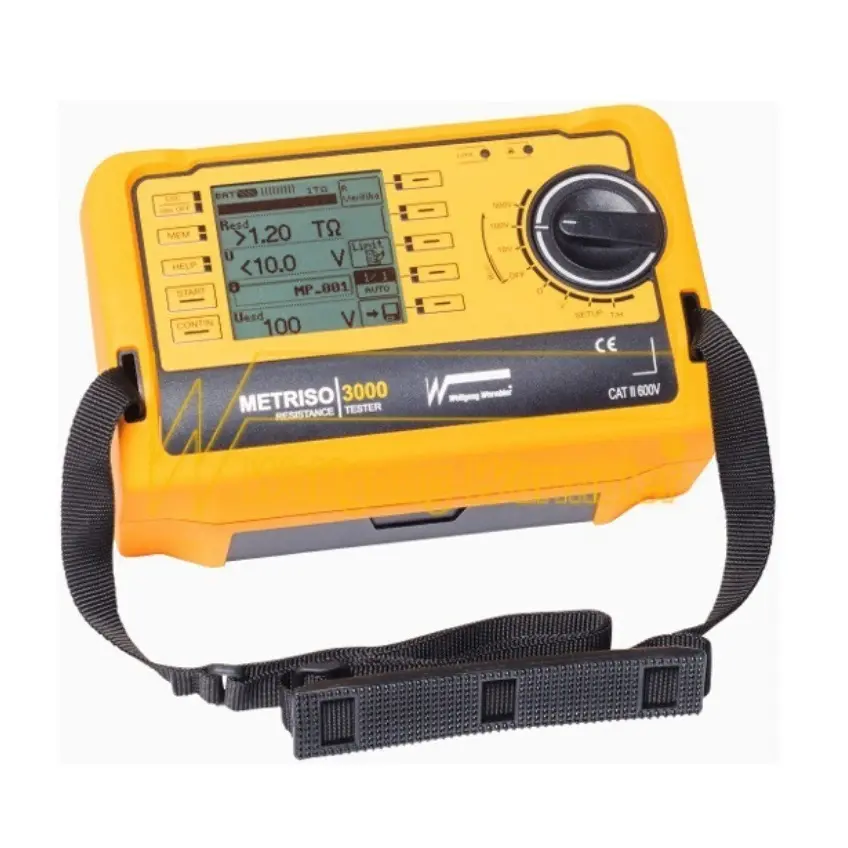

• Metriso^® 3000 - test kit includes:
  • digital high resistance tester
  • detachable temperature and relative humidity sensor
  • USB port
  • PC software for Windows®
  • 2 x 850 probes with black conductive rubber contact surface
  • hand-held probe with connecting cable
  • user's instructions in German, English and French
  • calibration certificate
  • conductive carrying case fitted with dissipative pink foam.
• Suitable for resistance point-to-point and resistance to ground measurements
• Integrated data logger with USB communication port for data transmission (50.000 test values). The supplied Report Generating Software ETC allows for generation of a complete test report
• An optional barcode scanner can be used in order to record test-point reference / location before taking measurement reading
• Test voltage / Test current: 1 mA <= I <= 1,3 mA High ohmic range: DC 10 volts,100 volts and 500 volts
• Test range: low ohmic range: 0 to 10 kOhm High ohmic range: 1 kOhm to 1,2 TOhm
• Battery operated
• Probes: 2 x Model 850 (weight: 2,27 kg / ø 63,5 mm) with conductive rubber, 1 x hand-held probe Model 45
• Complies with IEC 61340-4-1, IEC 61340-2-3, IEC 61340-4-5
