Dual Footwear & Wrist Strap Tester

Dual Footwear & Wrist Strap Tester

The WST3-2F will test both feet simultaneously, but independently, reducing pass-through rates of personnel.

There are 3 modes of operation:

1. Wrist Strap Tester only
2. Footwear Tester only
3. Wrist Strap & Footwear together

Specifications:

WST3-2F

• Wrist Strap Test - 750 kOhms to 35 MOhms
• Coil Cord connections - 10mm snap & 4mm jack socket
• Footwear Test - 100 kOhms to 100 MOhms
• 2 x independent stainless steel foot-plates
• Power: Battery operated (9 V)
• Signal: Audio / visual

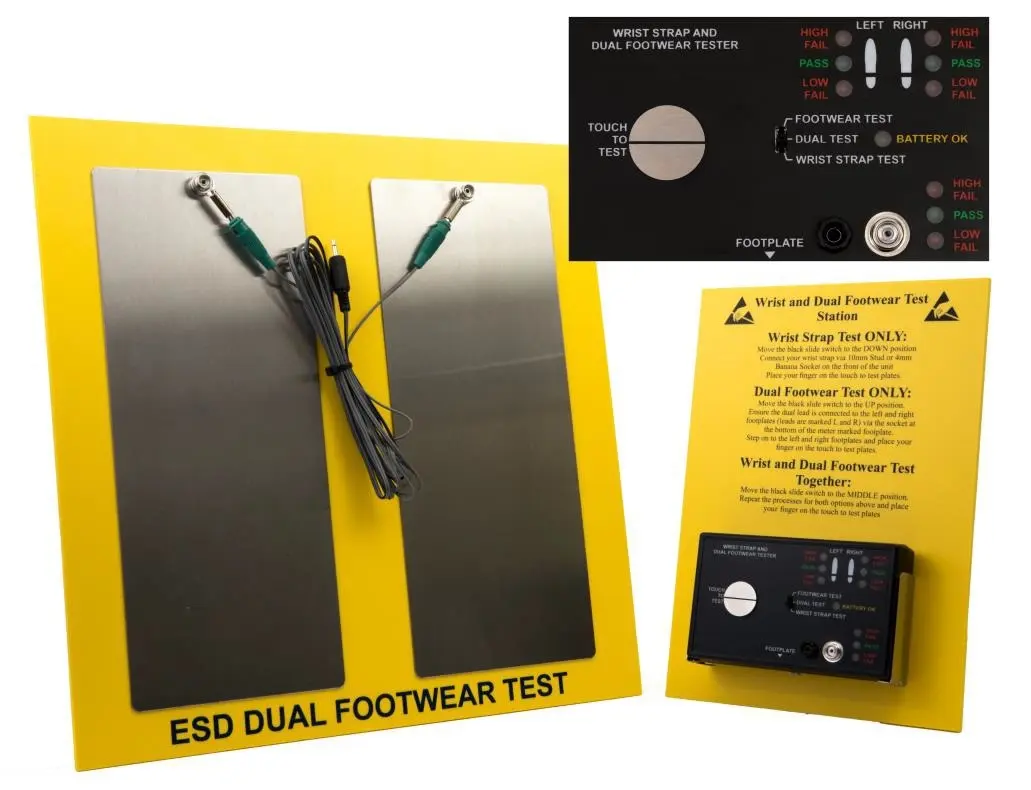

• Kit consists of Tester, Wall-plate & Dual Foot-plate with connecting leads
• Conforms to IEC61340-5-1 & ANSI/ESD S20.20

WST3-2F-AD

• Wrist Strap Test - 900 kOhms to 35 MOhms
• Coil Cord connections - 10mm snap & 4mm jack socket
• Footwear Test - 100 kOhms to 50 MOhms
• 2 x independent stainless steel foot-plates
• Power: Battery operated (9 V)
• Signal: Audio / visual
• Kit consists of Tester, Wall-plate & Dual Foot-plate with connecting leads
• *Conforms to eDEOP 101, Regulation 6.3, Procedure 2, "Normal Electrostatic Precautions":
  • Wrist Strap, Section 2.69
  • Footwear, Section 2.82
• Special indent order
