AMETEK Heavy Duty Grounding Reels

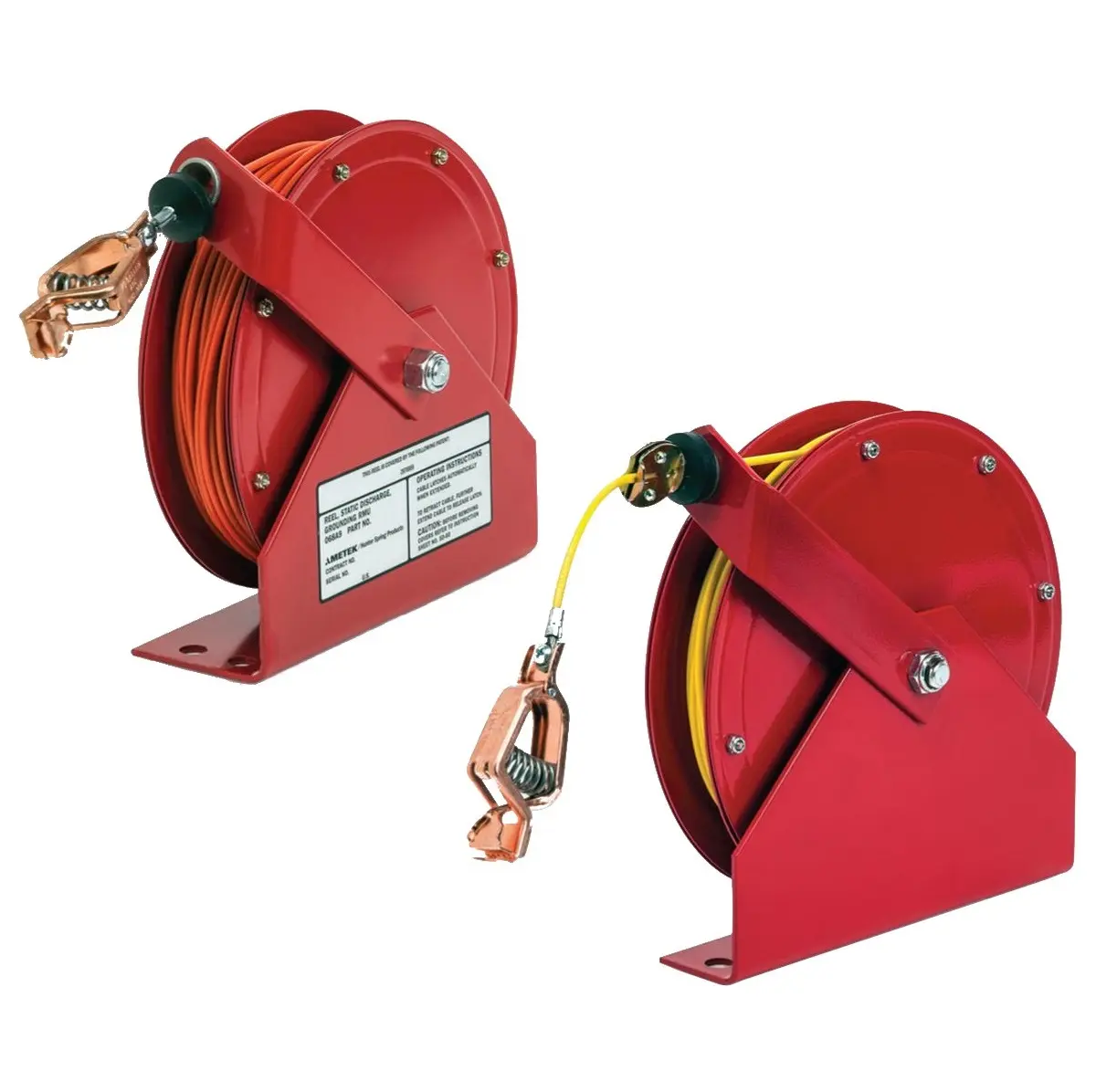

AMETEK - Heavy Duty Static Grounding Reels; Self-Retracting

For simple and effective static earthing / grounding of equipment.

ML-2930-61

• 15.24m (50 feet) long self-retracting with ratchet.
• Galvanised steel grounding cable 2.36mm dia. (0.093”), orange vinyl coated to 4mm dia. (0.156”)
• 100 Amp Alligator Copper Jaw Clip
• Maximum electrical resistance between end clamp and housing is 10 Ohms
• Includes an easy-to-use retraction system
• Operating Temperature Range:-54ºC to 52ºC (-65ºF to 125ºF)
• MIL-STD-808

ML-2930-62

• 22.86m (75 feet) long self-retracting with ratchet.
• Galvanised steel grounding cable 2.36mm dia. (0.093”), orange vinyl coated to 4mm dia. (0.156”)
• 100 Amp Alligator Copper Jaw Clip
• Maximum electrical resistance between end clamp and housing is 10 Ohms
• Includes an easy-to-use retraction system
• Operating Temperature Range:-54ºC to 52ºC (-65ºF to 125ºF)
• MIL-STD-808

ML-3416-17

• 30.48m (100 feet) long self-retracting with ratchet.
• Galvanised steel grounding cable 2.36mm dia. (0.093”), orange vinyl coated to 4mm dia. (0.156”)
• 100 Amp Alligator Copper Jaw Clip
• 1Maximum electrical resistance between end clamp and housing is 10 Ohms
• Includes an easy-to-use retraction system
• Operating Temperature Range:-54ºC to 52ºC (-65ºF to 125ºF)
• MIL-STD-808
