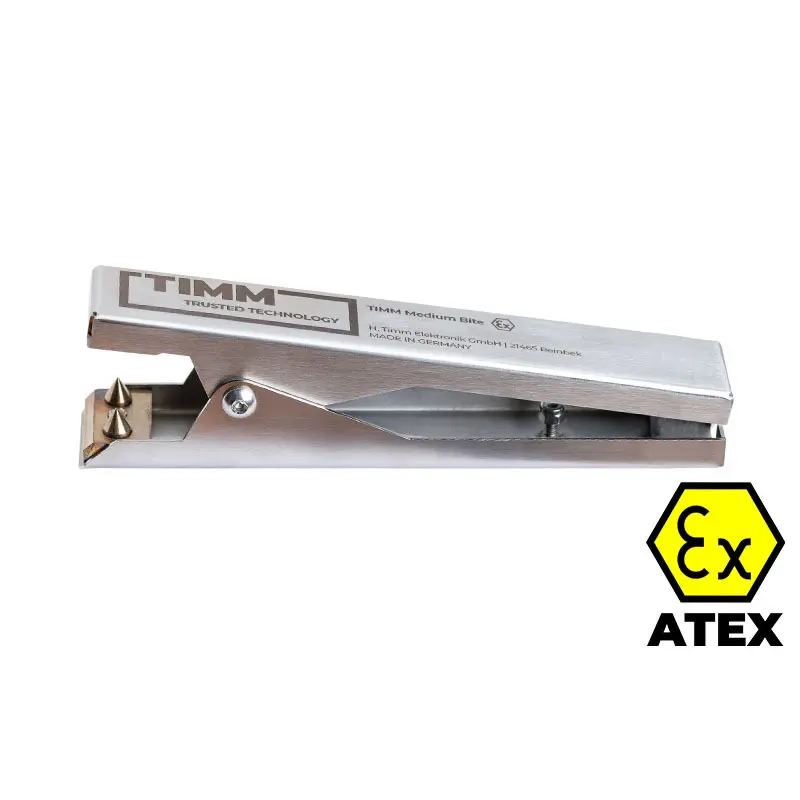

TIMM Stainless Steel Medium Grounding Clamp

TIMM Stainless Steel Medium Grounding Clamp

• Made in Germany
• Stainless Steel 302 / 1.4310, V2A
• Strong all-round solution for electrostatic grounding in rough work environments
• Easy handling
• Hardened stainless steel points
• Strong spring pressure for effective clamping
• Tip protection in rest position (opposite relief bores)
• Integrated cable clamp
• Ex, ATEX
• Available as clamp only or with grounding cable
• Recommended grounding cable: strong stranded coiled steel

Specifications:

• Ex zones: 1 and 21
• Ex certifications: Ex II 2 G Ex h IIA / IIB / IIC T6 Gb Ex II 2 D Ex h IIIC T80°C Db

Dimensions:

• Width: 21mm (nom.)
• Length: 140mm (nom.)
• Opening: 15mm

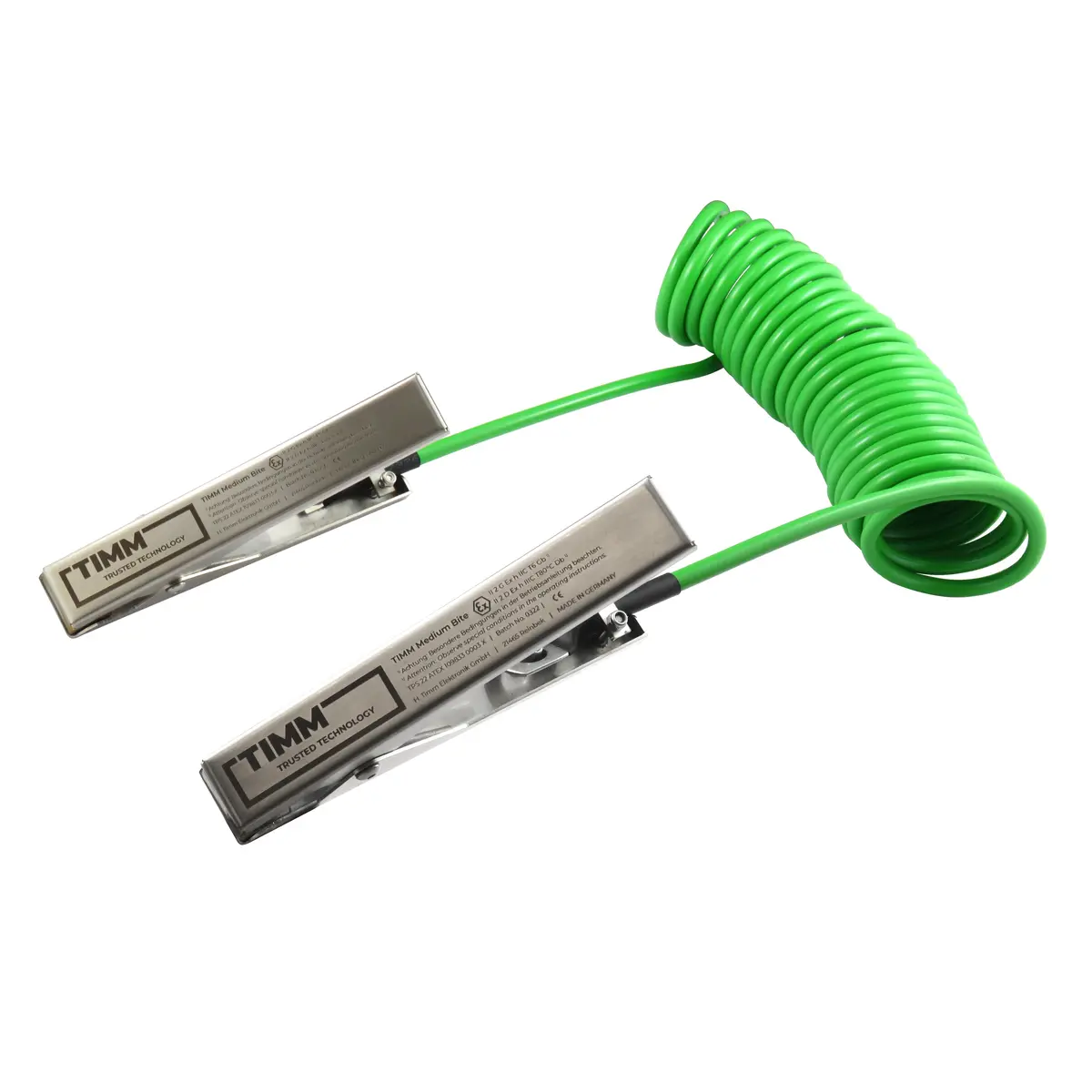

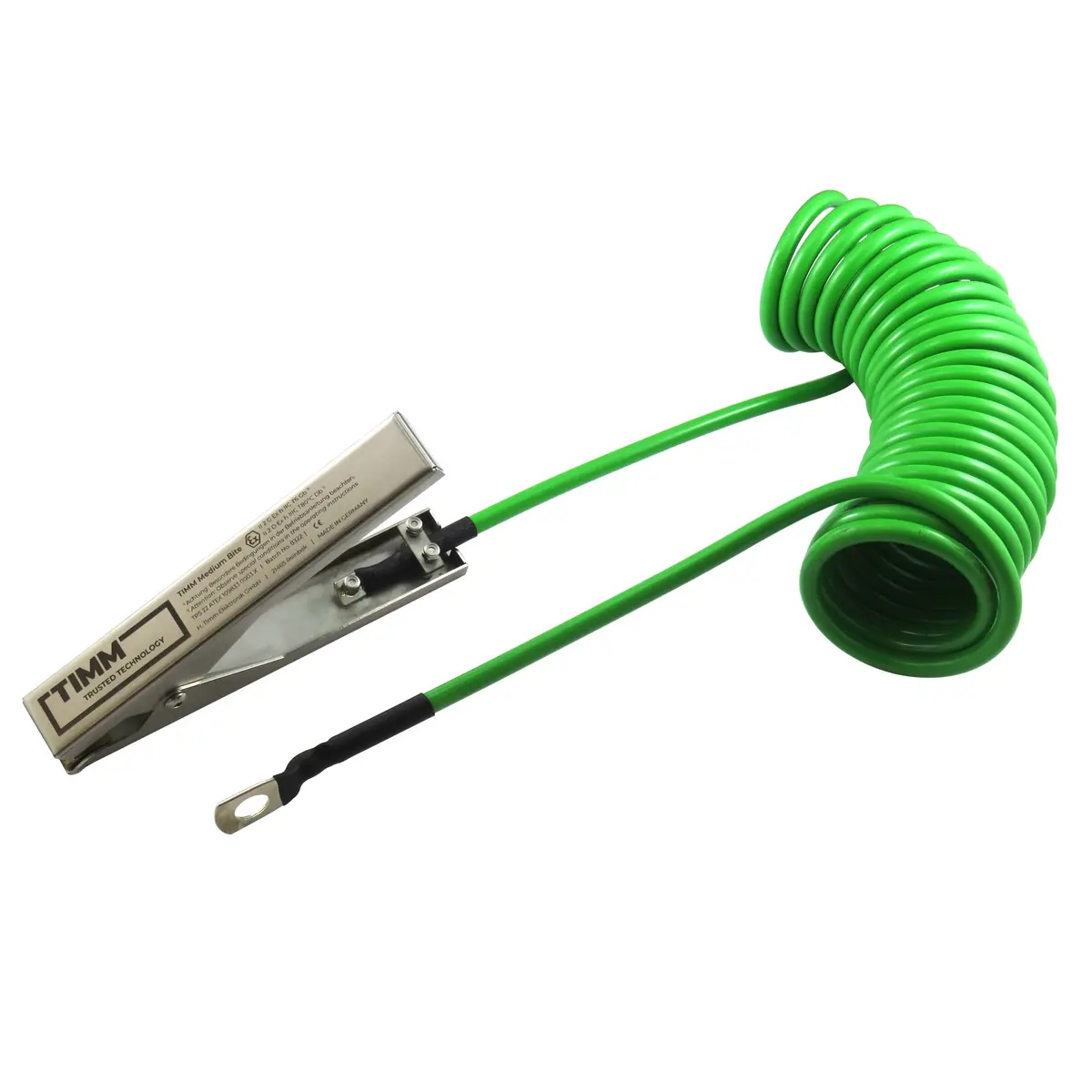

Cable Options: Spiral

Cable material and sheath

• Steel rope core (4mm²), green
• Steel rope core (4mm²), green/yellow
• Multi-stranded copper core (4mm²), green/yellow

Cable length

• Extendable to 3m
• Extendable to 5m
• Extendable to 10m

Cable Options: Straight

Cable material and sheath

• Steel rope core (4mm²), green
• Steel rope core (4mm²), green/yellow
• Multi-stranded copper core (4mm²), green/yellow
• Steel rope core (4mm²), bare

Cable length

• 1.5m
• 3m
• 5m
• 10m
