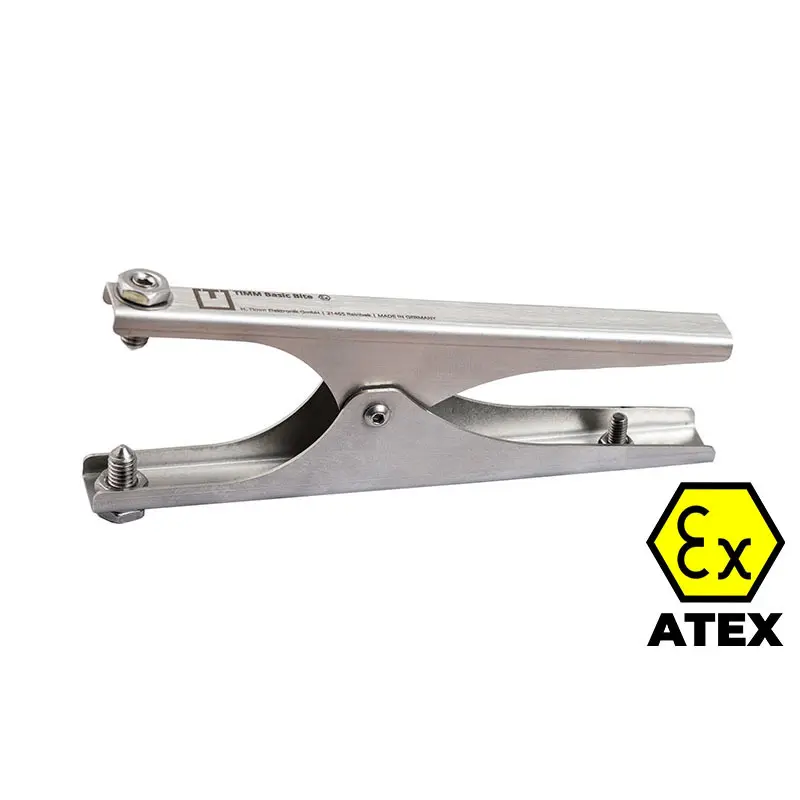

TIMM Stainless Steel Basic Grounding Clamp

TIMM Stainless Steel Basic Grounding Clamp

• Made in Germany
• Simple grounding clamp for basic protection against electrostatic charges in rough work environments
• Strong spring
• Ex, ATEX
• Stainless Steel 302 / 1.4310, V2A
• Integrated cable clamp
• TIMM Basic Bite can be ordered individually or ready for use with a connected grounding cable
• Recommended grounding cable: multi-strand copper

Specifications:

• Ex zones: 1 and 21
• Ex certifications: Ex II 2 G Ex h IIA / IIB / IIC T6 Gb Ex II 2 D Ex h IIIC T80°C Db

Dimensions:

• Width: 14mm (nom.)
• Length: 132mm (nom.)
• Gape: 30mm (min)

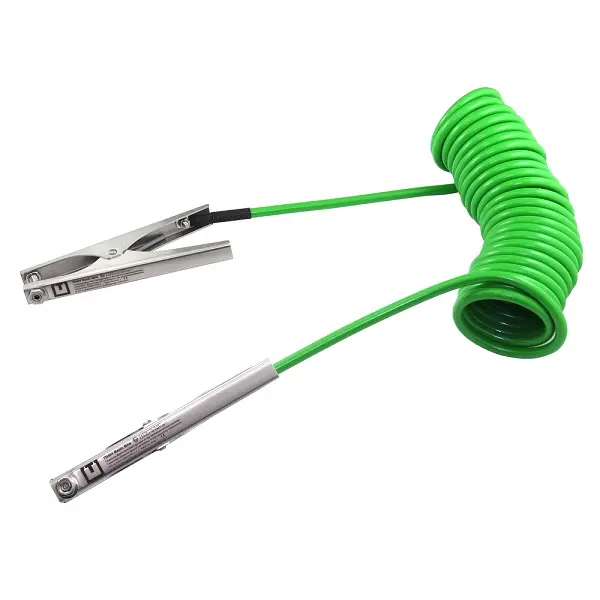

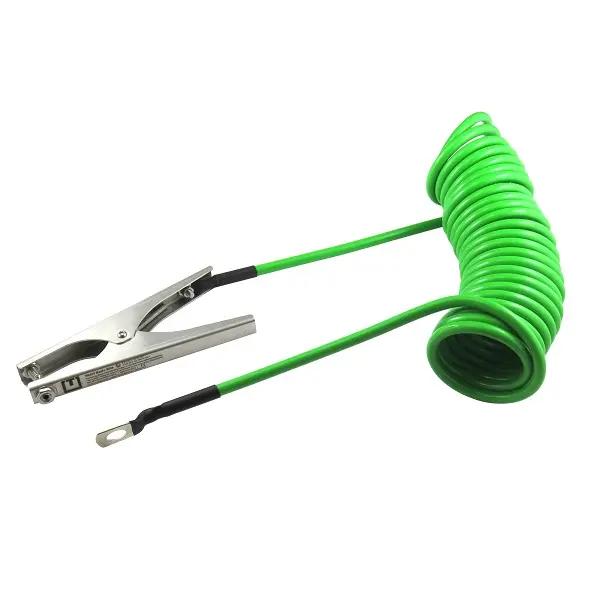

Cable Options: Sprial

Cable material and sheath

• Steel rope core (4mm²), green
• Steel rope core (4mm²), green/yellow
• Multi-stranded copper core (4mm²), green/yellow

Cable length

• Extendable to 3m
• Extendable to 5m
• Extendable to 10m

Cable Options: Straight

Cable material and sheath

• Steel rope core (4mm²), green
• Steel rope core (4mm²), green/yellow
• Multi-stranded copper core (4mm²), green/yellow
• Steel rope core (4mm²), bare

Cable length

• 1.5m
• 3m
• 5m
• 10m
