AMETEK Static Grounding ROTA-REEL

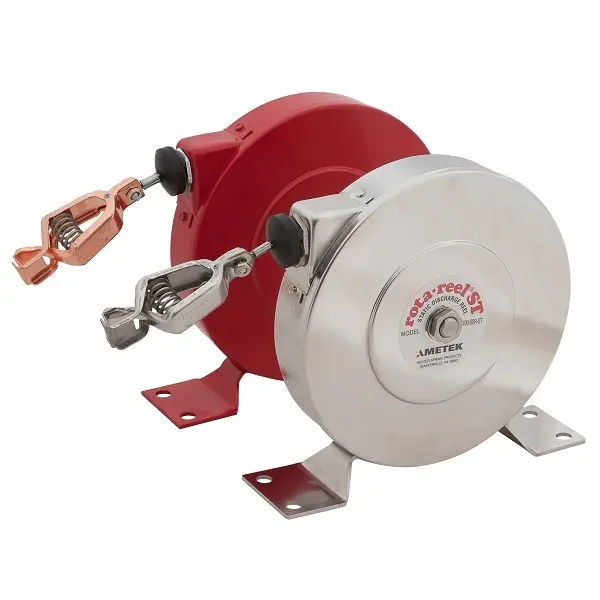

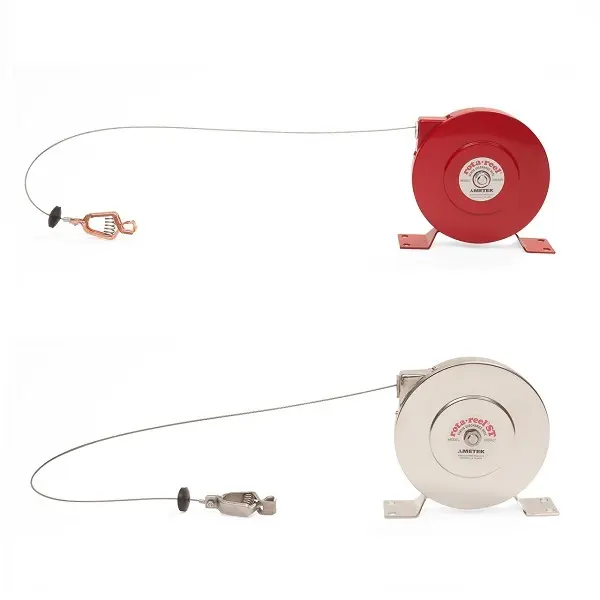

AMETEK ROTA-REEL 200 Series Static Grounding Reel

Galvanised Steel Earth Reel

The Ametek 200-20R ROTA-REEL is one of our most popular and affordable static grounding reels. The 200-20R model is a great general purpose reel that mounts easily to benchtops, workstations and mobile equipment. The compact size of this 6.1m long static grounding reel allows it to be mounted inside machine cabinets and other tight spaces.

200-20R

• 6.1m of 2.4mm galvanized steel cable
• L:171 x H:153x W:51 mm envelope
• Cable meets MIL-DTL-83420 (Supersedes MIL-W-83420)
• Locking ratchet with automatic rewind, life cycle tested to 5000 cycles
• Red powder-coated steel housing
• Copper 100A grounding clip
• Solid copper 21C jaw clip connection
• Maximum electrical resistance between end clamp and housing is 10 Ohm
• Compact and lightweight (1.6 kg)

200-20RH

• As above with Hytrel coated cable

Stainless Steel Earth Reel

The housing, arbor, cable and grounding clip of this retractable steel reel are all made of 304 stainless steel. As a low-sparking material, 304 stainless steel is commonly used in explosive environments and in the design of explosion-proof equipment. 304 stainless steel also has excellent corrosion resistance properties, making this reel a great choice for marine and chemical applications. With no coatings to flake or wear, this static grounding reel is also well suited for food and pharmaceutical processing plants.

200-20R-ST

• 6.1m of 2.4mm stainless steel cable
• L:171 x H:153x W:51 mm envelope
• Cable meets MIL-DTL-83420 (Supersedes MIL-W-83420)
• Locking ratchet with automatic rewind, life cycle tested to 5000 cycles
• Stainless steel 50A grounding clip
• Stainless steel 304 housing
• Maximum electrical resistance between end clamp and housing is 10 Ohm
• Compact and lightweight (1.6 kg)

200-20R-STH

• Same as above with Hytrel coated cable

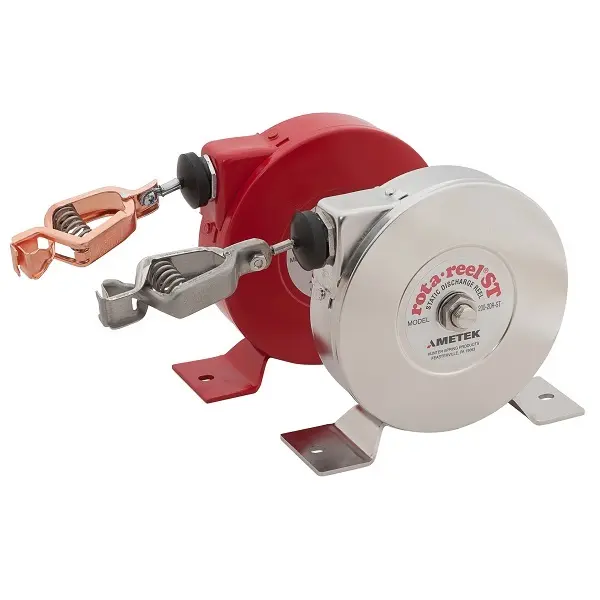

AMETEK ROTA-REEL 700 Series Static Grounding Reel

Galvanised Steel Earth Reel

This 15.2m static grounding reel is a very popular choice for tanker trucks and refuelling stations, mounting easily to either the truck’s frame or inside the pump box. Even with 15.2m of wound cable, it is still a very compact and lightweight static grounding reel.

700-50R

• 15.2m of 2.4mm galvanized steel cable
• L:222 x H:203 x W:61 mm envelope
• Cable meets MIL-DTL-83420 (Supersedes MIL-W-83420)
• Locking ratchet with automatic rewind, life cycle tested to 5000 cycles
• Red powder-coated steel housing
• Copper 100A grounding clip
• Solid copper 21C jaw clip connection
• Maximum electrical resistance between end clamp and housing is 10 Ohm
• Compact and lightweight (2.5 kg)

700-50RH

• As above with Hytrel coated cable

Stainless Steel Earth Reel

The housing, arbour, cable and grounding clip are made of 304 stainless steel. As a low-sparking material, 304 stainless steel is commonly used in explosive environments and in the design of explosion-proof equipment. 304 stainless steel is also extremely resistant to corrosion, making this static grounding reel a suitable choice for marine and chemical applications. This stainless steel grounding reel is designed to withstand harsh conditions and corrosive environments and is a popular choice for stainless steel tanker trucks. With no coatings to flake or chip, it is also an excellent choice for food, chemical and pharmaceutical applications.

700-50R-ST

• 15.2m of 2.4mm stainless steel cable
• L:222 x H:203 x W:61 mm envelope
• Cable meets MIL-DTL-83420 (Supersedes MIL-W-83420)
• Locking ratchet with automatic rewind, life cycle tested to 5000 cycles
• Stainless steel 50A grounding clip
• Stainless steel 304 housing
• Maximum electrical resistance between end clamp and housing is 10 Ohm
• Compact and lightweight (2.5 kg)

700-50R-STH

• Same as above with Hytrel coated cable
