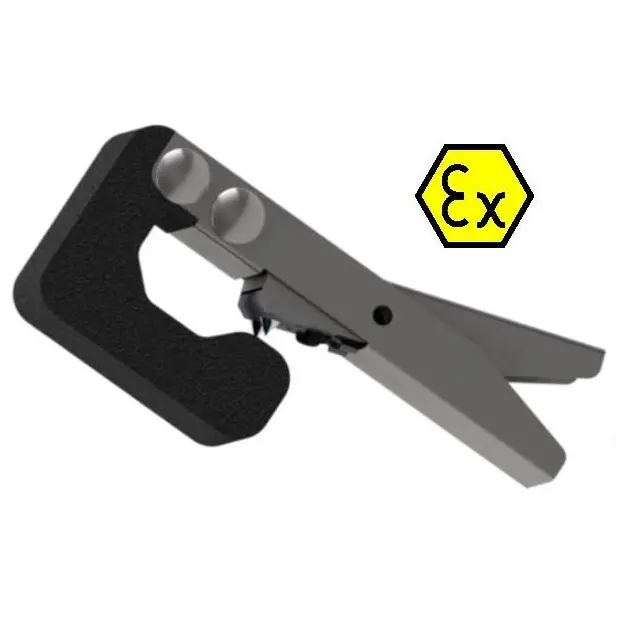

TIMM Stainless Steel Barrel Grounding Clamp

TIMM Stainless Steel Barrel Grounding Clamp

• Grounding clamp for specialised grounding of drums and barrels against electrostatic charges in rough work environments
• Strong spring
• Ex, ATEX
• Integrated cable clamp
• Stainless Steel 304
• TIMM Barrel Bite can be ordered individually or ready for use with a connected grounding cable
• Recommended grounding cable: standard steel coil cord

Specifications:

• Ex zones: 0 and 20
• Ex certifications: Ex II 1 G / IIB / IIC T6 Ga Ex II 1 D Ex h IIIC T80°C Db

Dimensions:

• Length: 150mm
• Opening: 20-30mm

Cable Options: Spiral

Cable material and sheath

• Steel rope core (4mm²), green
• Steel rope core (4mm²), green/yellow
• Multi-stranded copper core (4mm²), green/yellow

Cable length

• Extendable to 3m
• Extendable to 5m
• Extendable to 10m

Cable Options: Straight

Cable material and sheath

• Steel rope core (4mm²), green
• Steel rope core (4mm²), green/yellow
• Multi-stranded copper core (4mm²), green/yellow
• Steel rope core (4mm²), bare

Cable length

• 1.5m
• 3m
• 5m
• 10m
